Continuous Polycondensation

Up to now, we have provided more than 16.00 million tons production capacity to global customers.

OBHE can provide customers with the whole plant design covering general layout, civil engineering, utilities, boiler island, polymerization, spinning, automatic winding, three-dimensional storage.

Our company began independent research and development of five-kettle process continuous polyester technology in 1996, successfully launched in 2000 Jiangyin Huahong annual output of 80,000 tons continuous polyester production line, so far has contracted to build more than 90 continuous polyester production lines, of which the minimum capacity of a single line is 30 tons/day, the maximum capacity of 1800 tons/day, the production process has five kettle and four kettle two.Currently, in the field of PET polymerization, we have provided more than 12 million tons of production capacity to global customers, including an annual output of 600,000 tons of polymerization unit, which is the largest single set of polymerization unit in the industry.Lead the industry in aggregation differentiation technology.Products involve high pressure (atmospheric pressure) cations, antimony free environmental protection cations, high shrinkage, flame retardant, low melting point, full extinction, alkali (water) dissolution, antibacterial, antistatic, especially melt direct spinning filament, staple fiber differential technology, in the leading position in the industry.

“OBHE” CP Technical Features:

1. Stable and advanced technology

■ Optimized five-kettle process, mild reaction, easy to control, good quality.

■ Use EG full reuse technology, through special distillation system, to achieve low energy consumption, low EG consumption.

Vacuum polycondensation system is stable and controllable.

■ Steam, liquid phase heat medium sharing, complementary advantages.

■ Advanced differential technology to meet various production needs.

Two, efficient and reliable main equipment

■ Independent innovation designed process tower, high separation efficiency, esterification water EG content ≤0.1%, low consumption.

■ Advanced esterification reactor design for multiple varieties of differentiated production to provide quality assurance.

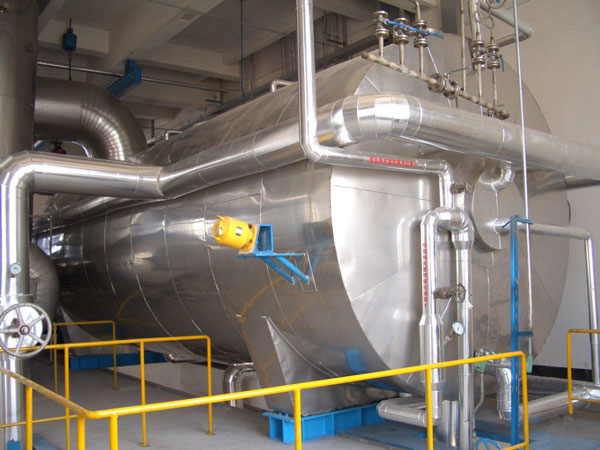

■ Optimized design of horizontal kettle disc agitator, large film forming area, high efficiency, no dead Angle design, can meet the production needs of different viscosity.

■ The reactor is treated with high precision to minimize wall hanging and carbonization materials.

Key parts of the equipment are selected international first-class brand, to ensure long-term stable operation.

Third, environmental protection, energy saving and consumption reduction

■ Heating or cooling using esterification tower top process steam to provide heat or cooling for polymerization, film drawing, spinning and office areas.

■ Unique circulating water design, heat medium circulation system design, greatly reduce the power consumption of public works.

■ The independent exhaust treatment system greatly reduces the VOC emissions of the system, truly achieving environmental protection and sustainable production.

■ Esterification waste water through stripping, tail gas into the boiler combustion, or acetaldehyde recovery, to make the best use of everything, both energy conservation and environmental protection and improve efficiency.

■ Through the optimization of device selection and design, to achieve real high quality, low energy consumption.
